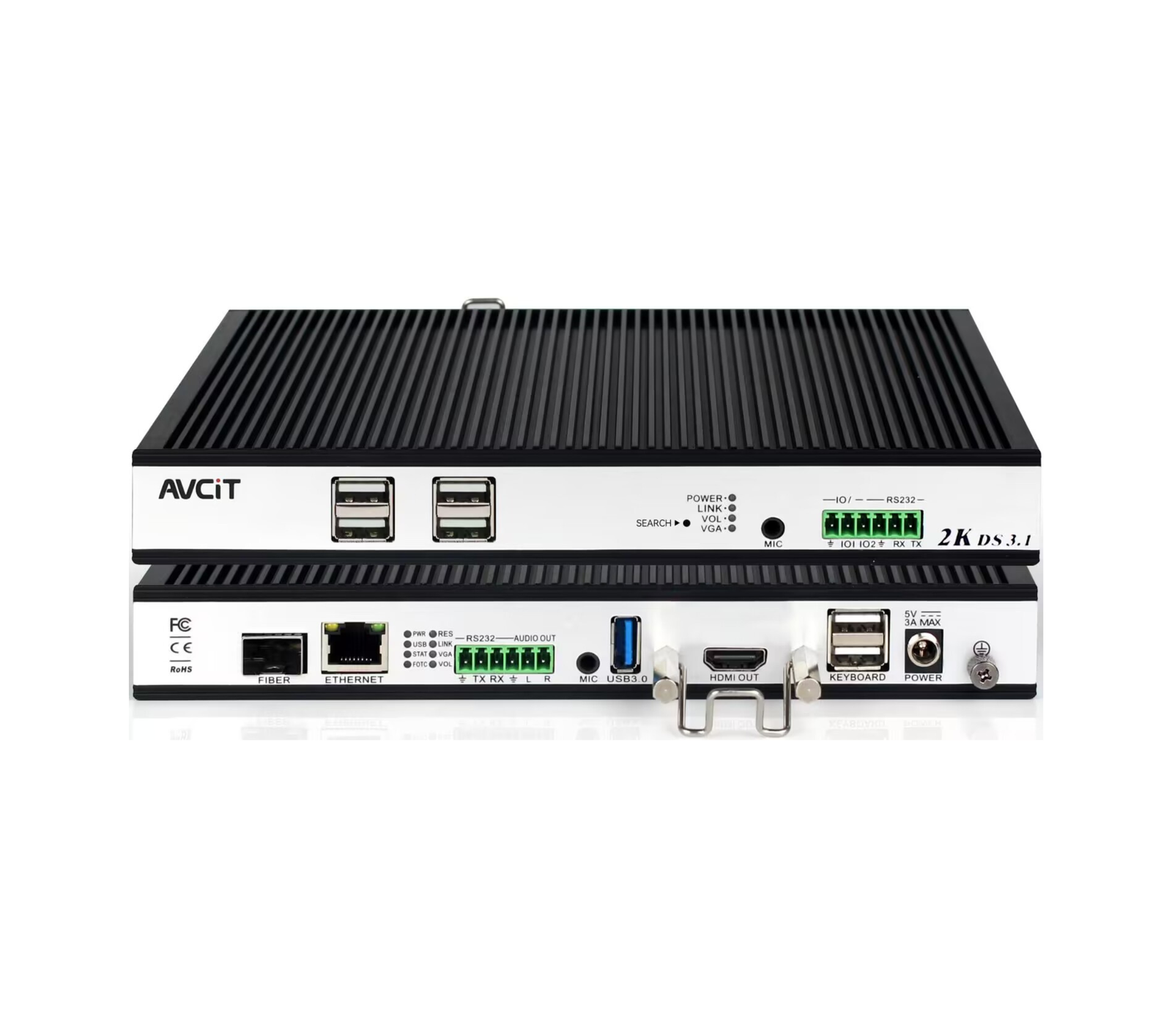

AVCiT 2K KVM Decoder - HDMI

AVCiT 2K KVM Decoder – HDMI

The H.265 based DSIII 4K KVM Decoder (HDMI) is designed to receive UHD video + USB-HID + RS232/485 + IR over standard 1GB IT network, with low latency and high image quality. It would be configured as a KVM Decoder to combine as an integrated and visualized Video Wall Controller & KVM over IP System.

  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation Center(JOC), Airport Operation Center (AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.
  • Industries: Government, Public Security, Finance, Telecom, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.
* Call for Solution & price

*  01712039067

Category: Brand:

Description

⇒ Highlights of 2K KVM Decoder – HDMI

  • In-built OSD interface to view and control the source, no need additional software.Highlights of 4K KVM Decoder - HDMI
  • Available to decode and control multiple source from different KVM encoders at same time.

Highlights of 4K KVM Decoder - HDMI



  • Compatible with both wired and wireless keyboard mouse or interactive monitor with multi-touch feature.

Highlights of 4K KVM Decoder - HDMI



  • Two-way audio and USB camera transmission for making video call between operators.

Highlights of 2K KVM Decoder(HDMI/DVI)



  • Distributed computing technology, no need additional server to process signal.
Highlights of 4K KVM Decoder - HDMI
  • Redundant power supply by both PSU and POE available.

Highlights of 4K KVM Decoder - HDMI



Schematic of combining as video wall controller & KVM over IP System

Schematic of Combining as Video Wall Controller & KVM Over IP System

Specification

Video Port

HDMI OUTx1 (with patented locking kits), DVI OUTx1

USB Port

USB2.0 x2 (for Keyboard mouse,Ukey,USB disk,USB camera)

Audio Port

MICx 1

Control Port

RS232 x1, IO/IR x1

Network Port

RJ45x1, Fiber Optic x1

Resolution

Support 1920×1200 ,1920x1080i and downward compatibility

Procotol

H.265/264, RTSP, ONVIF, HDCP and HDMI 1.4B compatible with DVI 1.0

Bandwidth

4~20 Mbps configurable for per video streaming

Transmission Distance

90 meters over CAT6 cable or 10 km over fiber

Audio Control

audio matrix switching, audio mixing, embed and de-embed feature.

Power Supply

PoE (802.3 AT) or 5V 3A Power Adapter(Dual power supply)
